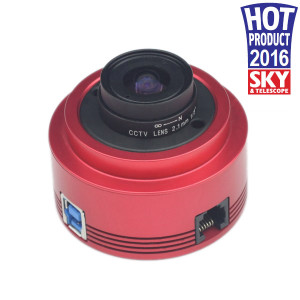

ASI224MC (color)

Code: ASI224MC
Description

ZWO ASI224MC USB 3.0 color camera, (1/3″ and 1.2M pixels sensor, IMX224 with SONY Exmor and NIR Technology, extremely low read noise (0.75e – 1.5 e) and high sensitivity especially in IR range)

ASI224MC has a 1/3″ and 1.2M pixels sensor IMX224 with SONY Exmor and NIR Technology.
Extremely low read noise (1.5 e) and high sensitivity especially in IR range.

Very suitable for astronomy planetary and small DSO imaging

Price: $367
Quantity:
Send to friend Add to wishlist

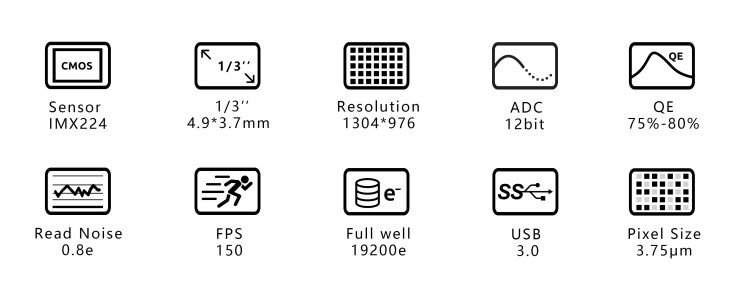

Camera technical details

Sensor: 1/3” CMOS IMX224/IMX225
Resolution: 1.2Mega Pixels 1304X976
Pixel Size: 3.75µm
Sensor Size: 4.8mm*3.6mm
Diagonal: 6.09mm
Exposure Range: 32µs-1000s
ROI: Supported
ST4 Guider Port: Yes
Focus Distance to Sensor: 12.5mm
Shutter Type: Rolling Shutter
Protect window: AR coated window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit rate: 12bit output(12bit ADC)
Adaptor: 2″ / 1.25″ / M42X0.75
Dimension: φ62mm X 36mm
Weight: 120g or 4.2 ounces (without lens)
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%

Supported resolution

10bit ADC / 12bit ADC
1304×976 150fps / 64fps
1280×960 152.4fps / 65fps
800×600 241.2fps / 102.9fps
640×480 299.4fps / 127.6fps
320×240 577.9fps / 256.4fps
More resolutions can be user defined

USB 3.0 Port & ST4 Port

USB 3.0 Port: Can provide 5Gb bandwidth to let ASI224 run at 64fps (12bit, normal mode) or 150 fps (10bit, high speed mode)  at full resolution(1.2Mega).

ST4 Port: Can be used connect with auto guide port of mount, for guiding.
